Managed & Unmanaged Switches

A switch is a device used to construct Ethernet networks and control the data flow and bandwidth of the network. A switch stores incoming packets and then tests the packet for check sum errors, if an error is found the packet is discarded. After that a decision is made as to which port or ports the packet should be forwarded to.This decision is made based on tables of Media Access Control (MAC) addresses. All MAC tables are created and
maintained automatically from the received packets.When the switch receives a packet on a port it stores the source MAC address in the MAC table that corresponds to that port. If a node is silent for a long time the MAC address will “age out” and be removed from the table. A switch can operate in full duplex mode, this ensures that an Ethernet controller will never see any collisions occurring when operated in such a manner.

A switch can be either managed or unmanaged, an unmanaged switch can not be reconfigured using external software tools. A managed switch allows access to its functions to allow it to be reconfigured or monitored.This management can be inband- using protocols on the network or outband via a local management port or fault contacts.A managed switch often uses SNMP (Simple Network Management Protocol) for inband management. SNMP is the Internet standard protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

Download Lynx Manual
L110-F2G - Managed Ethernet Switch
  • Industrial managed switch made for harsh environments
  • Multirate transceiver support (100Mbit or 1 Gbit)
  • Real time Ethernet
L208-F2G-S2 - Managed Device Server Switch
  • Compact Device Server Switch for legacy application
  • Designed for use in industrial applications
  • Robust for long service life
  • Unique future proof industrial networking solutions
Viper-112 - Managed EN 50155 Switch
  • Compact basic rail-approved Ethernet solution
  • Externally tested and verified to EN50155
  • Designed for long life and extreme operational environments
  • Design and production testing to match requirements for train control
Viper-012 - Unmanaged EN 50155 Switch
  • Compact basic rail-approved Ethernet solution
  • Externally tested and verified to EN50155
  • Designed for long life and extreme operational environments
  • Design and production testing to match requirements for train control
Lynx+ Compact Layer 3 Managed Ethernet Switch
  • Made Easy and secure configuration – Web config and CLI
  • Future-proof feature rich software platform – WeOS
  • Exstensive routing support – OSPF, RIP, VRRP, Firewall
  • IPsec VPN, SNMPv3, VLAN, IGMP Snooping
Lynx 100 Series Switches
  • QoS based on layer 2 (IEEE802.1p) and layer 3 (IPToS)
  • Strict priority scheduling
  • Redundant power input with polarity protection Input Power Monitoring
  • Port setting (auto-negotiation, HDX/FDX and 10/100 Mbit/s)
Lynx-100
Lynx 1100 Series Switches
  • 0, 1 or 2 GigE ports of TX or FX type – 1000BASE
  • Port setting (auto-negotiation, HDX/FDX and 10/100/1000 Mbit/s)
  • Head of Line blocking prevention for low priority packets
  • QoS based on layer 2 (IEEE802.1p) and layer 3 (IP ToS)
Lynx-1100
Lynx 300 Series Switches
  • FRNT v0: Single Ring topology
  • 30 ms reconfiguration of Redundant Ring
  • Port setting (auto-negotiation, HDX/FDX and 10/100 Mbit/s)
  • Head of Line blocking prevention for low priority packets
Lynx-300
Lynx 1300 Series Switches
  • 0, 1 or 2 GigE ports of TX or FX type – 1000BASE
  • FRNT v0 – redundant ring
  • RSTP with STP fallback
  • Port setting (auto-negotiation, HDX/FDX and 10/100/1000 Mbit/s)
Lynx-1300
Lynx 400 Series Switches
  • VLAN Applications
  • IGMP Snooping
  • Up to 200 switches supported in a Ring
  • Port setting (auto-negotiation, HDX/FDX and 10/100 Mbit/s)
Lynx-400
Lynx 1400 Series Switches
  • FRNT v0 – redundant ring
  • Port based VLAN
  • MAC address filtering
  • 0, 1 or 2 GigE ports of TX or FX type – 1000BASE
  • RSTP with STP fallback
Lynx-1400
SDW-500 Series Switches
  • Flexible combination of TX- and FX-ports
  • Plug and play
  • Automatic MDI/MDI-X crossover
  • ABB Industrial IT Enabled Product
  • Single mode or multi mode fiber
SDW-500
T-200 Real Switch
  • 30 mS reconfiguration of redundant ring
  • Supports Layer 3 priority tagging
  • MDX/MDIX technology to easy switch connection
  • Network Time Protocol (NTP)
T-200 Real Switch
U-200 Fast Switch
  • True network determinism
  • Layer2 / supports Layer 3 priority tagging
  • MDX/MDIX technology to easy switch connection
U-200
R-200 Ring Switch
  • 30mS reconfiguration of redundant ring
  • Layer2 / True network determinism
  • Head of line blocking prevention
  • MDX/MDIX technology to easy switch connection
R-200

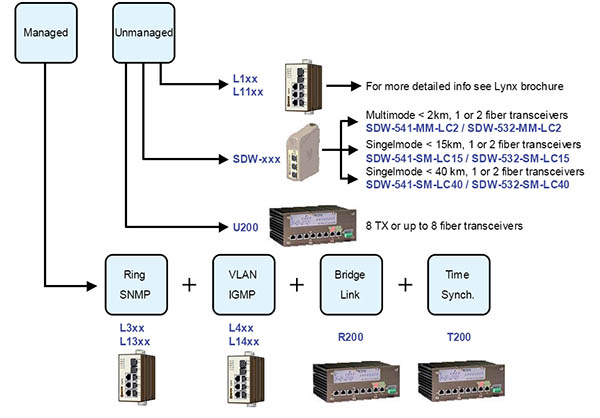

Switch Selection Guide Lynx 100 / 1100 Series Lynx Brochure SDW-200 Series U-200 Lynx 300 / 1300 Series Lynx 400 / 1400 Series R-200 T-200
