LRW-102/LRW-102PP

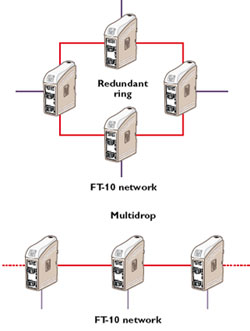

The LRW-102/LRW-102PP offers an easy way to extend the distance between 78 kbit/s LonWorks TP/FT-networks using a fiber optic link. The LRW-102/102PP is completely transparent to the protocol therefore installation is simple as no new network addresses are needed. The LRW-102 is equipped with either one (LRW-102PP) or two pairs of fiber optic receivers and transmitters. This allows the user to build either point to point-, bus- or redundant ring topology fiber links. The LRW-102/102PP has a built-in redundancy system that provides for fault tolerance in the fiber rings.


LRW-102


  • LonWorks®, TP/FT-10, 78 kbit/s
  • Distances up to 20 km
  • Multi-/single mode fiber
  • LC-connectors
  • Point to point (LRW-102PP)
  • Bus or redundant ring
  • Transparent repeater function
  • Optical signal regenerated
  • Alarm output indicating Fiber failure
  • LV-supply
  • Easy to install
  • 35 mm DIN-rail housing
